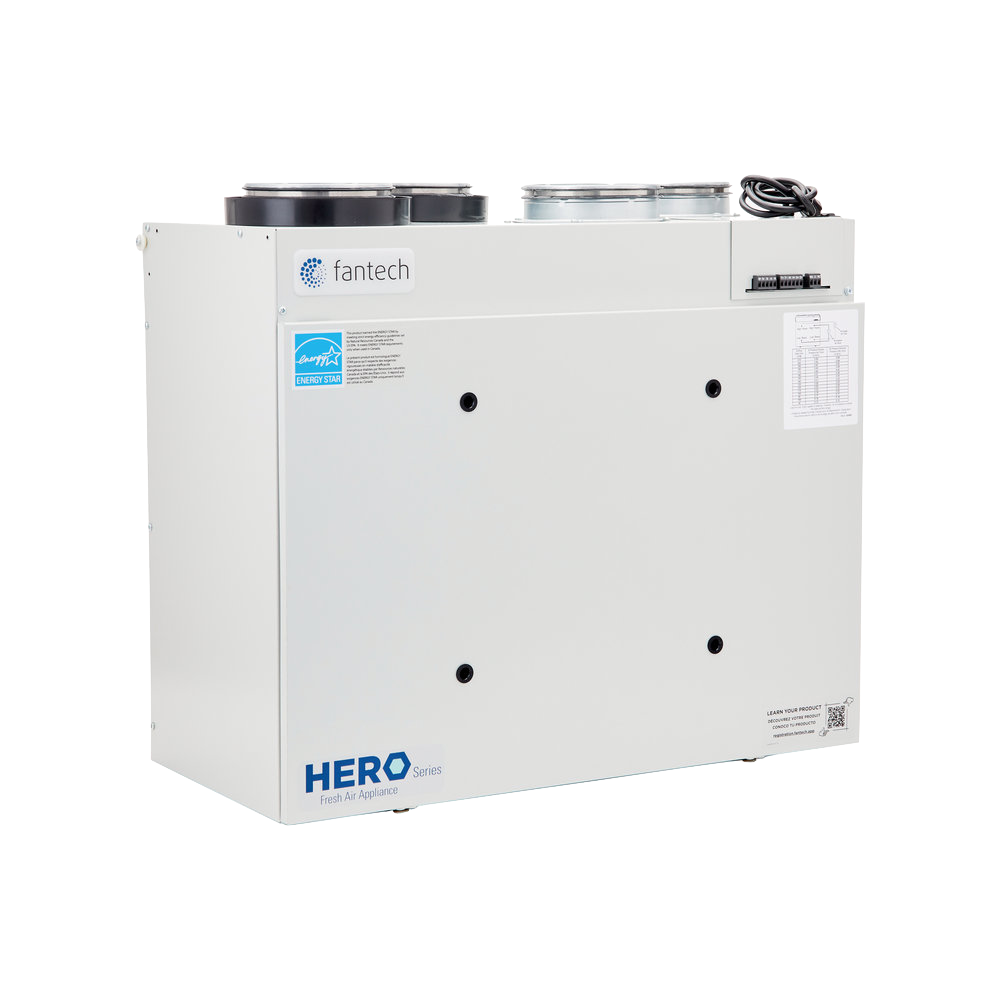

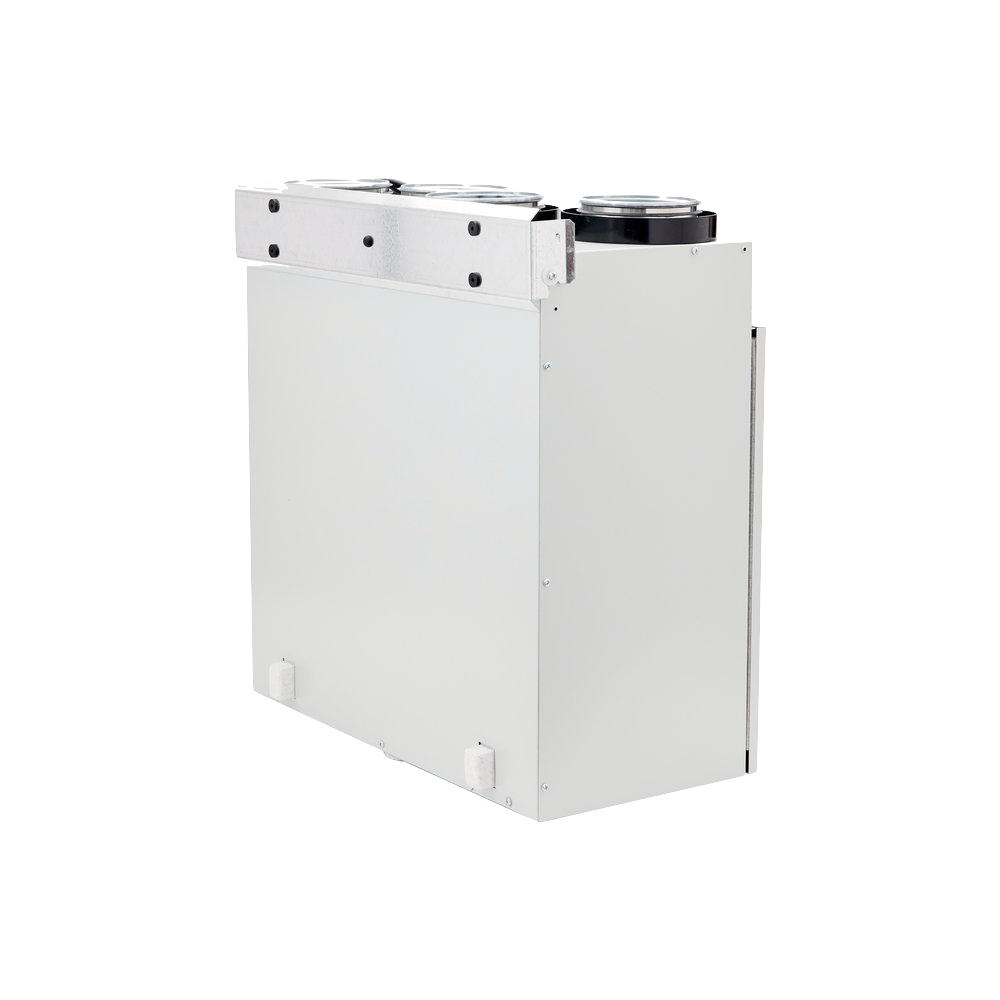

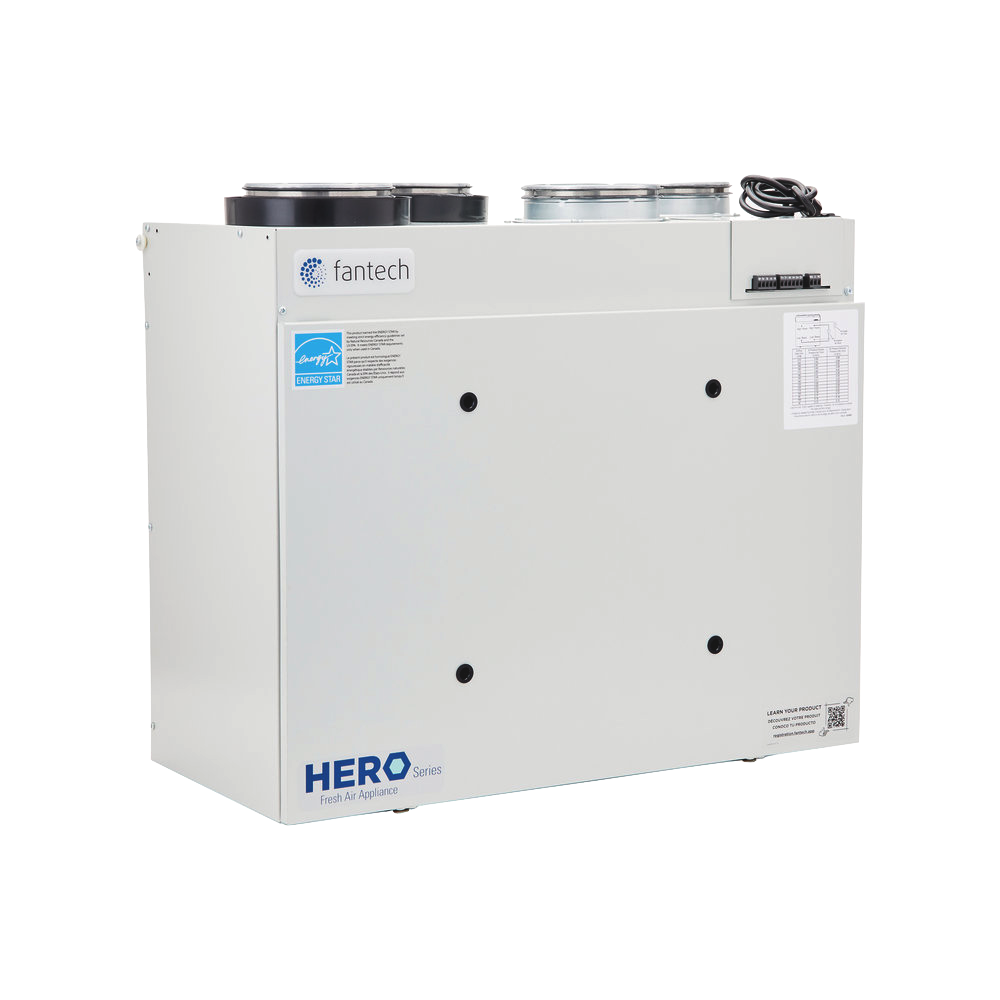

FANTECH HERO 150H

BY FANTECH


HERO 150H fresh air appliance provides a controlled way of ventilating a home. It works continuously to supply up to 160 cfm of fresh, filtered air into the building while removing the equal amount of moist, stale air. Up to 80% of the heat in the extract air is recovered by the heat exchanger and used to heat the fresh air coming from outside. In summer, the energy of extract air transfers to cool the warmer fresh air reducing cooling loads on air conditioning.


The HERO features a counterflow core to deliver exceptional heat transfer performance. The product comes with a wall mount, external electrical box with easy connect ports, integrated in-door manometer ports and duct ports with plastic collar shrouds with integrated backdraft for simple fast installation.

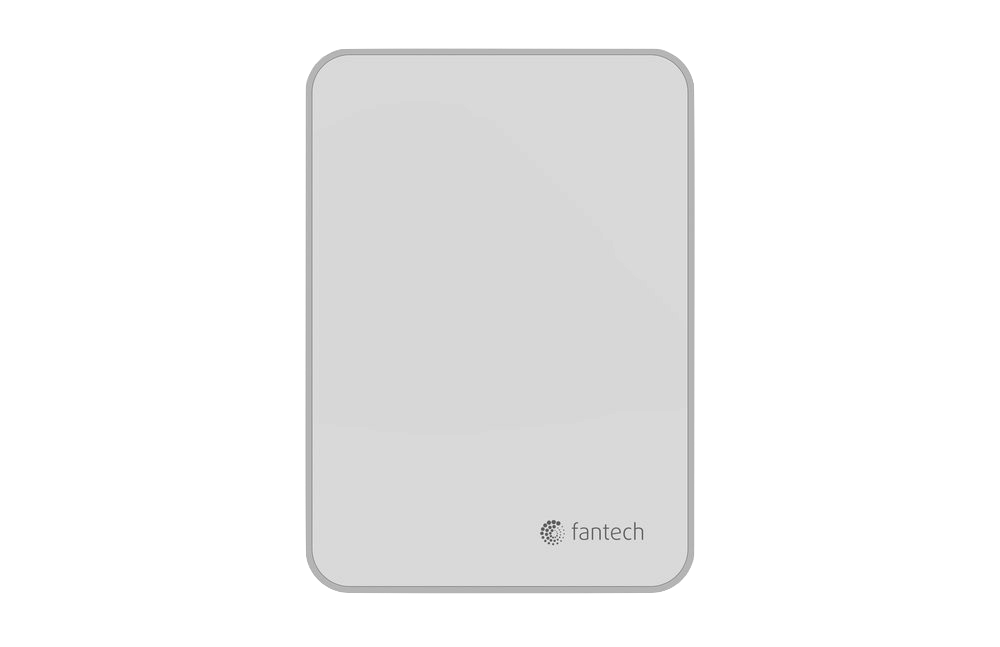

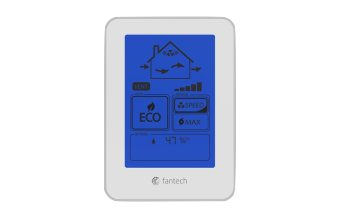

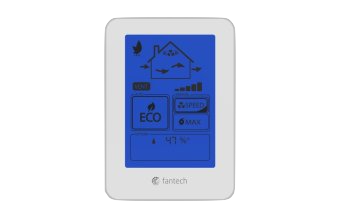

HERO 150H is compatible with ECO-TOUCH® Programmable Wall Control.



FEATURES

  • Up to 160 cfm of fresh air
  • Integrated MERV8 fresh air filter
  • 6” top-mounted duct connections
  • Unobstructed front access
  • Energy-efficient counter flow core
  • Multiple speed operation

ABOUT

Fans

Two (2) factory-balanced fans with backward curved blades. Motors come with permanently lubricated, sealed ball-bearings to guarantee long life and maintenance-free operation.

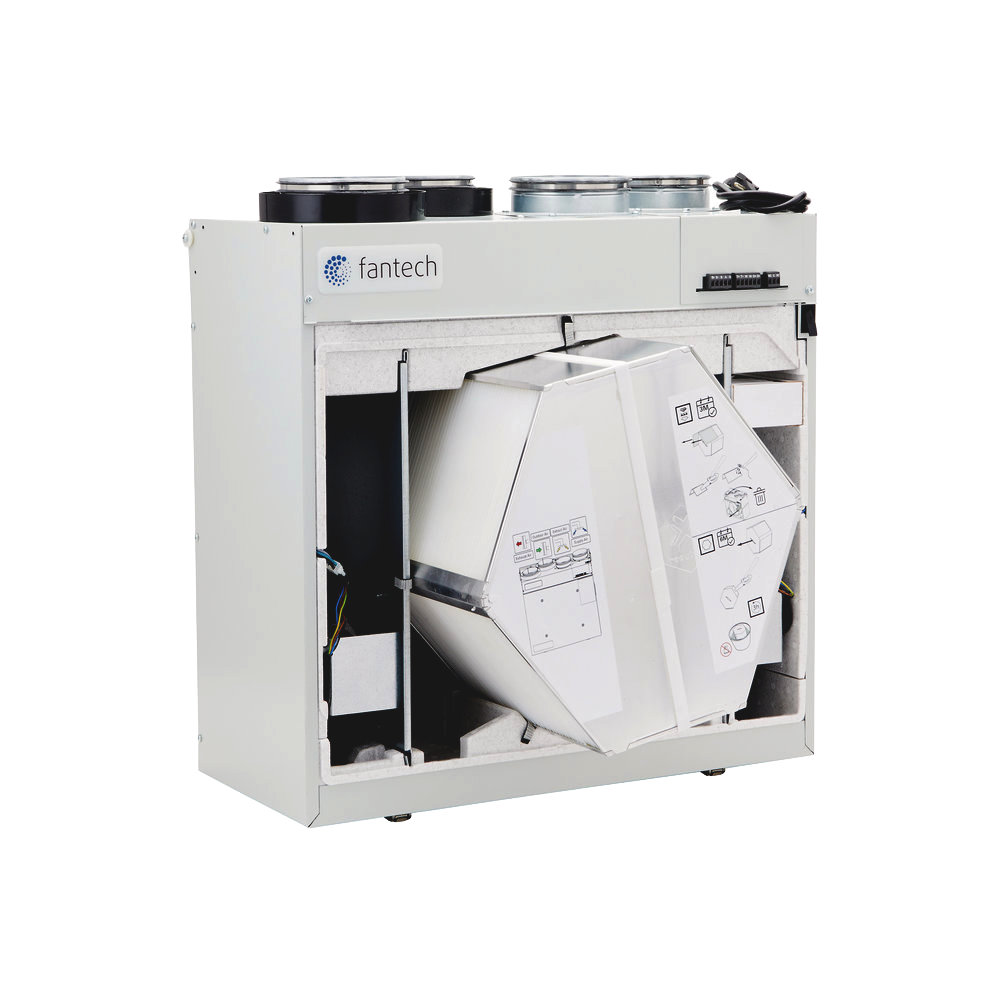

Heat Recovery Core

Counterflow heat recovery exchanger built from thermoformed polymer plates covered by a limited lifetime warranty. Core dimensions are 14.4" x 14.4" (366 x 366 mm) with a 10" (255 mm) depth. Our heat exchangers are designed and manufactured to withstand extreme temperature variations.

Defrost

The unit incorporates a unique and quiet internal recirculation defrost that does not depressurize the home during the defrost cycle. A preset defrost sequence is activated when the outdoor temperature falls below 23° F (-5° C) and automatically adjusts itself based on operating conditions. The fan speed is also adjusted automatically to provide a smooth and quiet transition between Ventilation & Defrost mode.

Serviceability

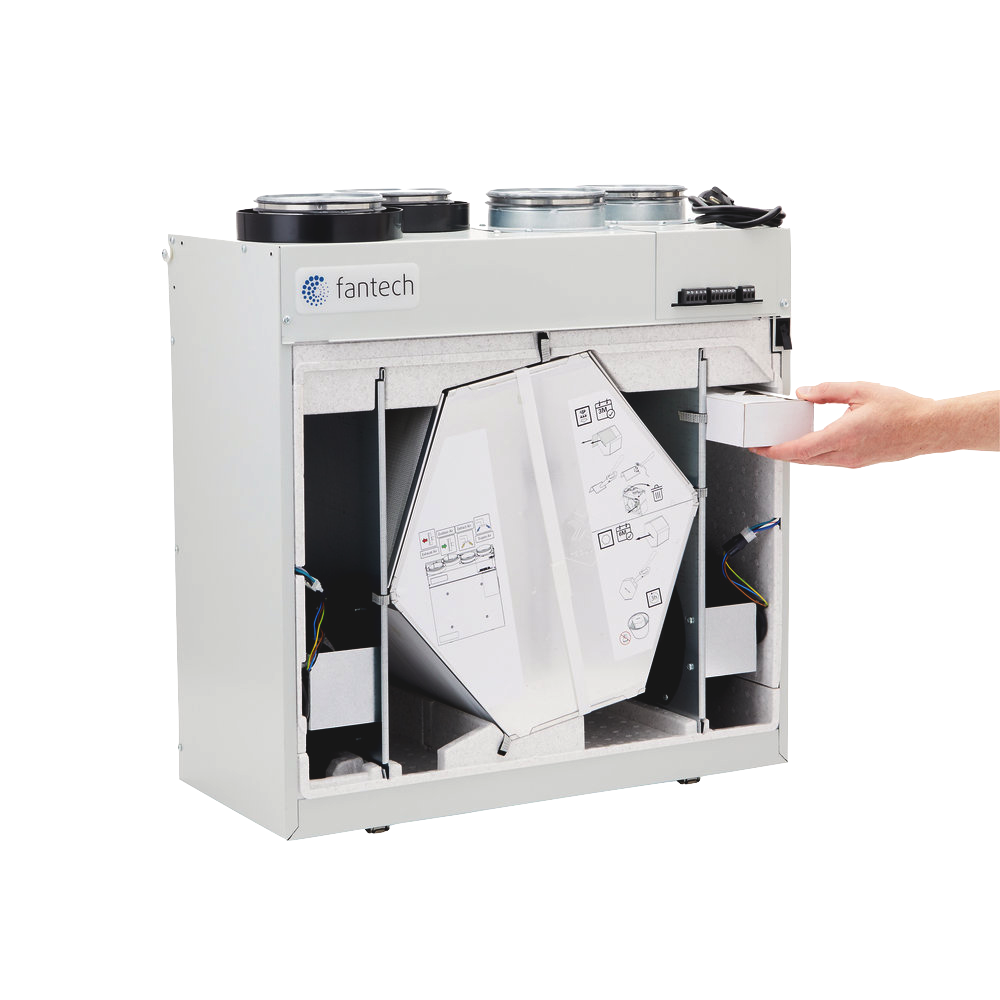

Core, filters, fans and electronic panel can be accesses easily from the access panel. Core conveniently slides out with only 12" (305 mm) clearance.

Duct Connections

6" (152mm) round metal duct connections with rubberrized seal.

Case

24 gauge galvanized pre-painted steel corrosion resistant

Insulation

Cabinet is fully insulated with 3/4" (20 mm) high density expanded polystyrene.

Filters

Two (2) washable electrostatic panel type air filters 7.87" (200mm) x 9.84" (250mm) x 0.125" (3mm). An added MERV-8 supply filter is supplied with the unit. MERV-8 dimensions 3.48" x 10.12" x 1.75" (88.5mm x 257mm x 44.5mm)

Warranty

Limited lifetime on counterflow exchanger, 7 year on motors, and 5 year on parts.

Requirements and Standards

  • Complies with the UL 1812 requirements regulating the construction and installation of Heat Recovery Ventilators
  • Complies with the CSA C22.2 no. 113 Standard applicable to ventilators
  • Complies with the CSA F326 requirements regulating the installation of Heat Recovery Ventilators
  • Technical data was obtained from published results of test relating to CSA C439 Standards
  • HVI certified and ENERGY STAR® qualified*

*This product earned the ENERGY STAR® by meeting strict energy efficiency guidelines set by Natural Resources Canada and the US EPA. This product meets ENERGY STAR requirements only when used in Canada.

To ensure quiet operation of the ENERGY STAR certified H/ERV, each product model must be installed using sound attenuation techniques appropriate for the installation.

The way your heat/energy-recovery ventilator is installed can make a significant difference to the electrical energy you use. To minimize the electricity use of the heat/energy recovery ventilator, a stand-alone fully ducted installation is recommended. If you choose a simplified installation that operates your furnace air handler for room-to-room ventilation, an electrically efficient furnace that has an electronically commutated (EC) variable speed blower motor will minimize your electrical energy consumption and operating cost.

Installation of a user-accessible control with your product model will improve comfort and may significantly reduce the product model’s energy use.


FANTECH HERO



FEATURES & OPTIONS

ECO TOUCH® AUTO IAQ

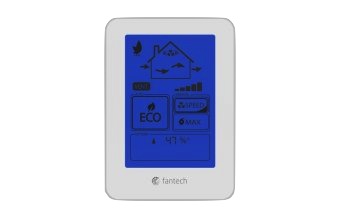

ECO TOUCH® CONTROLLER


CONTRACTOR COMMISIONING KIT

ECO FEEL™️ AUTO IAQ CONTORL

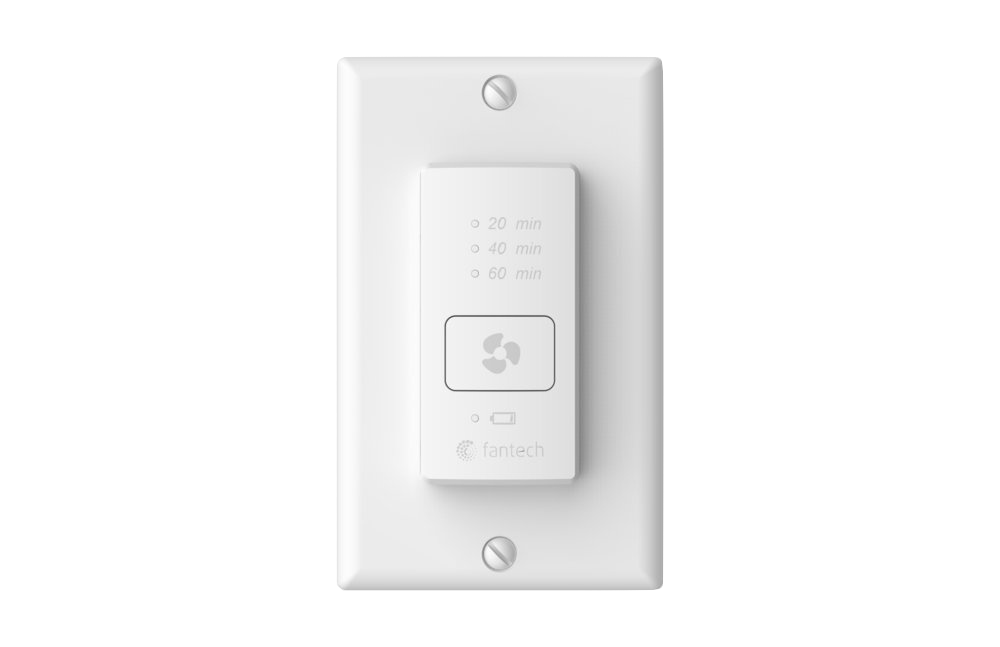

RTS-W WIRELESS TIMER
